4.3inch LCD touch screen display with 480*272 Resolution and 40Pin RGB Interface
Product Description:
HC043TE30029-B03V.C is a high-end 4.3-inch LCD with CTP. It offers fast response speed and high refresh rate with TN technology built in. It’s an ideal option for those applications which requires response speed and touch function. The 40Pin RGB interface of this display provides a reliable high-speed data transmission for exceptional image quality and performance. Its resolution of 480*272 pixels and brightness of 250nits, bringing a delicate and clear pictures for users. And the contrast ratio of 500:1 makes the contrast between light and dark in the picture more obvious and the colors more prominent. The HC043TE30029-B03V.C has an outline dimension of 115.00mm*80.00mm*4.6mm, which enables it is suitable for telephone entry and access control systems and point-of-care biochemistry analyzer. Moreover, because of its ability to operate at -20℃ to 70℃, this display can continue to work in various harsh environments, reducing repair and replacement costs caused by screen failure and increasing the service life of the device.
General Specification:
| P/N | HC043TE30029-B03V.C |
| Size | 4.3inch |
| Display type | Normally White, Transmissive |
| Resolution | 480*272 |
| Outline Dimension(mm) | 105.5(W )*67.2(H)*4.5(T)mm |
| Active Area(mm) | 95.04(W)*53.856(H)mm |
| Brightness(cd/m²) | 300 |
| Viewing Angle(L/R/T/B) | 70/70/50/70 |
| Interface | 40pinRGB |
| Operation Temperature | -20~70 |
| Storge Temperature | -30~80 |
| Aspect ratio | 16:9 |
| Contrast ratio | 500 |
| Application | telephone entry and access control systems and point-of-care biochemistry analyzer |
Pin assignment:
Electrical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT | Test Condition |
| Supply Voltage | Vf | - | 15.5 | - | V | If=40mA |
| Supply Current | If | - | 40 | - | mA | - |
| Life Time | - | 30000 | - | - | hrs | If=40mA |

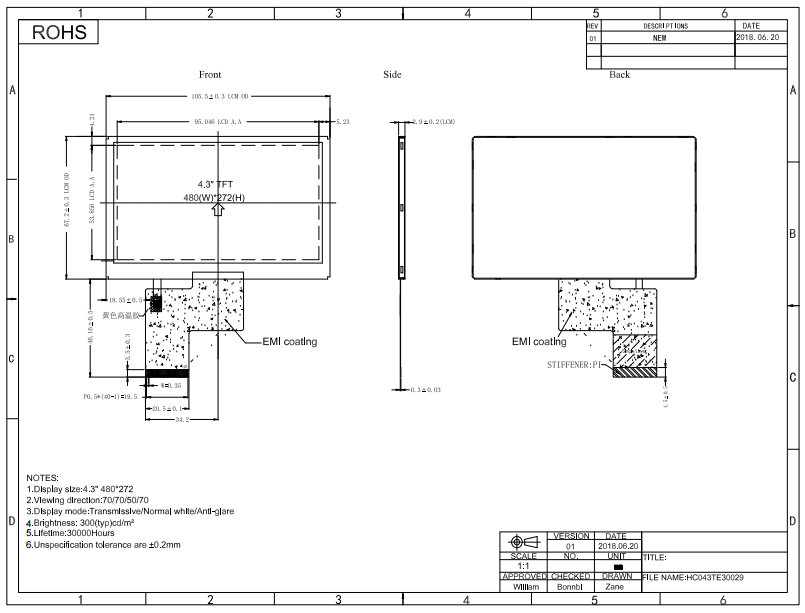

Product drawings:
4-4.3inch lcd display series:
| 4-4.3inch LCD Display Sizes |
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. |
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 4" | HC040I*30021-C82 | IPS | 480*480 | 74.66*76.54*2.15mm | 71.856*70.176mm | 40pinRGB | 800 | 300 | -20~70℃ | -30~80℃ |
| 2 | 4" | HC041IXA5030-F77 | IPS | 1280*640 | 106.9*61.9*2.9mm | 92.544*46.272mm | 40pinRGB | 1500 | 1500 | -40~105℃ | -40~105℃ |
| 3 | 4" | HC040I*30021-C82V.C | IPS | 480*480 | 86*86*37.5mm | 71.856*70.176mm | 40pinRGB | 800 | 250 | -20~70℃ | -30~80℃ |
| 4 | 4.3" | HC043TE20029-B58 | TN | 480*272 | 105.5*67.2*2.9mm | 95.04*53.856mm | 40pinRGB | 500 | 200 | -20~70℃ | -30~70℃ |
| 5 | 4.3" | HC043IG30029-D92 | IPS | 800*480 | 105.5*67.2*2.9mm | 95.04*53.86mm | 12pinSPI | 1200 | 300 | -20~70℃ | -30~80℃ |
| 6 | 4.3" | HC043IG30029-D92V.1 | IPS | 800*480 | 105.5*67.2*4.05mm | 95.04 ×53.856mm | 12pinSPI | 500 | 280 | -20~70℃ | -30-80℃ |
| 7 | 4.3" | HC043TE20029-B55 | TN | 480*272 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 500 | 200 | -20~70℃ | -30-80℃ |
| 8 | 4.3" | HC043TE30029-B03V01 | TN | 480*272 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 500 | 300 | -20~70℃ | -30-80℃ |
| 9 | 4.3" | HC043TE30029-B03V.C | TN | 480*272 | 105.5*67.2*4.5mm | 95.04×53.856mm | 40pinRGB | 500 | 300 | -20~70℃ | -30-80℃ |
| 10 | 4.3" | HC043TE45031-B03 | TN | 480*272 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 500 | 450 | -20~70℃ | -30-80℃ |
| 11 | 4.3" | HC043TE50029-B03 | TN | 480*272 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 500 | 500 | -20~70℃ | -30-80℃ |
| 12 | 4.3" | HC043TE50029-B03V02 | TN | 480*272 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 500 | 500 | -20~70℃ | -30-80℃ |
| 13 | 4.3" | HC043TE80031-B80 | TN | 480*272 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 500 | 800 | -20~70℃ | -30-80℃ |
| 14 | 4.3" | HC043TE78040-B80 | TN | 480*272 | 105.5*67.2*4.0mm | 95.04*53.868mm | 40pinRGB | 500 | 780 | -20~70℃ | -30-80℃ |
| 15 | 4.3" | HC043IE30031-B80 | IPS | 480*272 | 105.5*67.2*3.0mm | 95.04*53.856mm | 40pinRGB | 800 | 300 | -20~70℃ | -30-80℃ |
| 16 | 4.3" | HC043TE30040-B80V.1 | TN | 480*272 | 105.5*67.2*4.05mm | 95.04×53.856mm | 40pinRGB | 500 | 200 | -20~70℃ | -20~70℃ |
| 17 | 4.3" | HC043TE40040-A46V.1 | TN | 480*272 | 104.7×66.4×4mm | 95.04×53.856mm | 40pinRGB | 500 | 400 | -20~70℃ | --20~70℃ |
| 18 | 4.3" | HC043IG80030-B56 | IPS | 800*480 | 105.5*67.2*3.0mm | 95.04*53.856mm | 40pinRGB | 800 | 800 | -20~70℃ | -30~80℃ |
| 19 | 4.3" | HC043IE40029-F47 | IPS | 480*272 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 800 | 400 | -20~70℃ | -30~80℃ |
| 20 | 4.3" | HC043IE50029-D65 | IPS | 480*272 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 800 | 500 | -20~70℃ | -30~80℃ |
| 21 | 4.3" | HC043IE50029-D65V.C | IPS | 480*272 | 105.5*67.2*4.35mm | 95.04*53.86mm | 40pinRGB | 800 | 450 | -20~70℃ | -30~80℃ |
| 22 | 4.3" | HC043IEA0029-B03H | IPS | 480*272 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 800 | 1000 | -30~85℃ | -30~85℃ |
| 23 | 4.3" | HC043IG50029-D20 | IPS | 800*480 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 1200 | 500 | -20~70℃ | -30~80℃ |
| 24 | 4.3" | HC043IGA0029-D20H | IPS | 800*480 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 1200 | 1000 | -30~85℃ | -30~85℃ |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
